Shaker & Roller Apparatus

Roller Apparatus Max-Roll

NB204GR Series
  • 제품이미지
  • 제품이미지
  • 제품이미지
  • 제품이미지
  • 제품이미지
  • 제품이미지
  • 제품이미지
  • 제품이미지

Large loading capacity up to 100 bottles

Steel reinforced polyurethane timing belts

Caster for mobility and caster locks for immobility

Power coated aluminum body

NB204GR Series

Speed Range: 1 to 30rpm

Standard Roller Bottle: 110mm to 120mm, 30 ~ 100ea

Ambient Temp.: 0 to 50°C

Ambient Humidity: 35 to 85% RH

Products Features

N-BIOTEK Roller Apparatus is designed for using in the production of massive attachment cells. The rollers are available in 10 bottles per one deck and up to 100 bottles in 10 decks of roller. Roller’s DC motor makes less vibration and low noise for stable rotation. All rollers are available to use in N-BIOTEK’s large capacity incubator, Max Cell Giant.
Maintenance free brushless DC motors
for low noise and vibration
Large loading capacity up to 100 bottles
2 bottles in one rolling part
Steel reinforced polyurethane timing belts
for years of trouble-free operation
Power coated aluminum body
for durability and cleanliness, rust-proof
Caster for mobility and caster locks for immobility
Oil lubricants free system
Auto-restart after power failure
Audible alarm & optional alarm contact
for the error in belt and motor
Built-in battery back-up (Optional)
approx. 24 hours of operation in the event of power failure


Specification

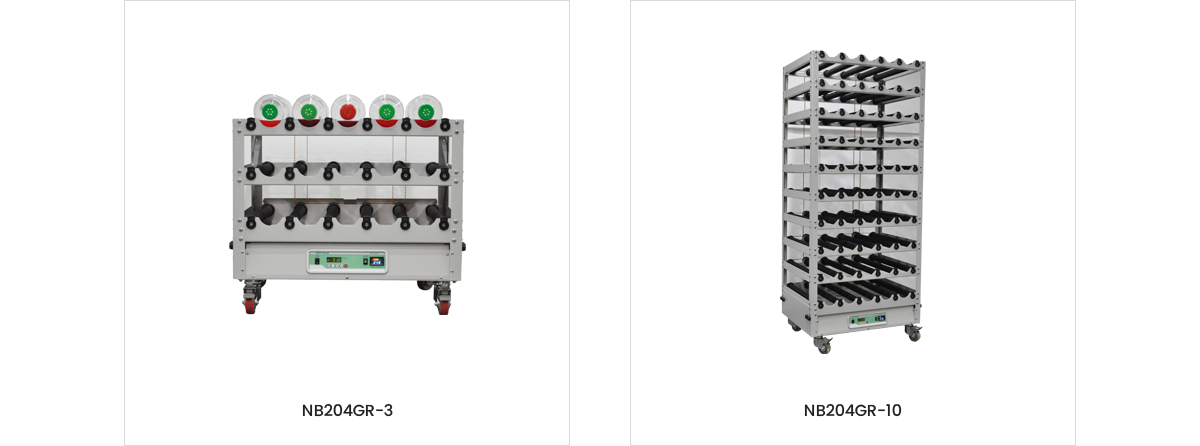

　 NB-204GR3 NB-204GR10
Speed Range 1rpm to 30pm (*Based on 2Liter Bottle rpm) 1rpm to 30rpm (*Based on 2Liter Bottle rpm)
Speed Resolution 0.1rpm 0.1rpm
Speed Increment 0.1rpm 0.1rpm
Time Range 1 minute to 99 hours 59 minutes or Continuous Operation 1 minute to 99 hours 59 minutes or Continuous Operation
Time Accuracy ±1% ±1%
Display 5 Digit LED Display 5 Digit LED Display
Motor DC Motor DC Motor
Maximum Bottle Loading Capacity (2Liter Bottle*) 110 to 120mm, 30ea *Bottle Length below 250mm 110 to 120mm, 100ea *Bottle Length below 250mm
Roller Deck Dimensions 750(W)x564(D)mm 750(W)x564(D)mm
Overall Dimensions 756(W)x626(D)x642(H)mm 756(W)x626(D)x1799(H)mm
Ambient Temperature 0 to 50°C 0 to 50°C
Ambient Humidity 35 to 85% RH 35 to 85% RH
Motor Control 32bit DSP PWM Drive 32bit DSP PWM Drive
Motor Input Voltage 24vdc±10% 24vdc±10%
Alarm Function Buzzer, Display Buzzer, Display
Power AC90 to 264V, 50/60Hz, Max 70W AC90 to 264V, 50/60Hz, Max 75W
Weight About 40kg or less About 80kg or less

Option for NB204GR Series

NB-204GR2 2 Stack Roller Apparatus for 2L Bottle x 10ea per one stack
NB-204GR3 3 Stack Roller Apparatus for 2L Bottle x 10ea per one stack
NB-204GR4 4 Stack Roller Apparatus for 2L Bottle x 10ea per one stack
NB-204GR5 5 Stack Roller Apparatus for 2L Bottle x 10ea per one stack
NB-204GR6 6 Stack Roller Apparatus for 2L Bottle x 10ea per one stack
NB-204GR7 7 Stack Roller Apparatus for 2L Bottle x 10ea per one stack
NB-204GR8 8 Stack Roller Apparatus for 2L Bottle x 10ea per one stack
NB-204GR9 9 Stack Roller Apparatus for 2L Bottle x 10ea per one stack
NB-204GR10 10 Stack Roller Apparatus for 2L Bottle x 10ea per one stack
